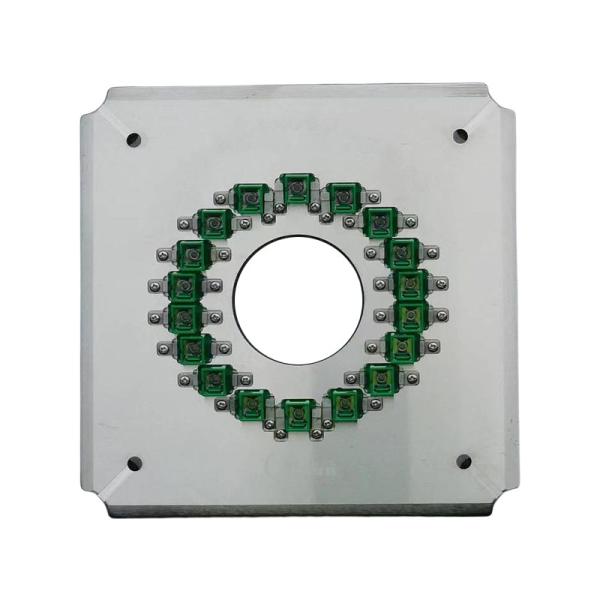

Optical Fiber 18 Connector SC/APC Polisher Fixture/Jig
Origin: Guangdong, China
Fiber Patch Cord Polishing Fixture Product Description:
This Fiber polishing fixture for SC/APC 18 Connectors are made of stainless steel,Adopt Four corner pressure way to polish, used for mechanically polishing the ends of fiber-optic jumpers, cables, patchcords or assemblies.
Meanwhile, the adapter of connector jig can be interchanged, prolong the service life of grinding plate.
APC Polish Fixtur Features:
1. The fiber optical polishing fixture is used in central polishing machine, to plishing SC/APC Connector.
2. This fiber optical polishing fixture adopt independent pressurized way, eliminate ferrules show the different length effects on polishing
3. Each fiber optical polishing fixture can hold 18 connectors. It has high production efficiency.
4. The plugs of fiber optical polishing fixture can be interchanged, extend fiber polishing fixture's life.
5. The fiber optical polishing fixture has good quality, high efficiency
6. All kinds of fiber optical polishing fixtures can be customized according by customer requirment.
Optical Fiber Polishing Jig Polishing Fixture
| Name | Fiber Optic Polishing Fixture SC |
| Material | Stainless Steel |
| Size | 174mm*174mm*26mm |
| Net weight | 1.2kg |
| application | Fixed and polishing SC/APC fiber optic connector |
| Suitable Machine | CLX-02E and SEIKOH GIKEN SFP-550 Serials |
| Model | SC/APC |
| Insertion Loss | ≤0.20dB(typical) |
| Return Loss | ≥60dB(APC) |
| 3D pass rate | 100% |
| 3.Max capactiy | 18 connectors a time |
| MOQ | 1pcs |
Optical Fiber Polish Jig Applications:
1.Polishing ferrule for patchcords, such as SC/APC
2.SC/APC ferrule Manufacturer polishes geometry dimensions;
3.SC/APC attenuator ferrule polishing;
About shipping
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
FAQ
1.Polished ferrules could not reach required shape or quality.
(1)Film is used over 40 times.
(2)Water doesn’t be used.
(3)Films are not cleaned completely.
(4)Ferrules and jig are not fixed correctly.
(5)The distance adjustment between screw top and Plane A is not correct.
2.Bad quality for the polished surface.
(1)Film is used over 40 times.
(2)Polishing liquid is not used.
(3)Film is dirty.
(4)Ferrules are not cleaned completely.
(5)Scraped by film when pulling out the ferrules.
3.How can we guarantee quality?
(1)Always a pre-production sample before mass production;
(2)Always final Inspection before shipment;
4.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Product Tags:
|
|
Optical Fiber 18 Connector SC/APC Polisher Fixture / Jig Images
|
