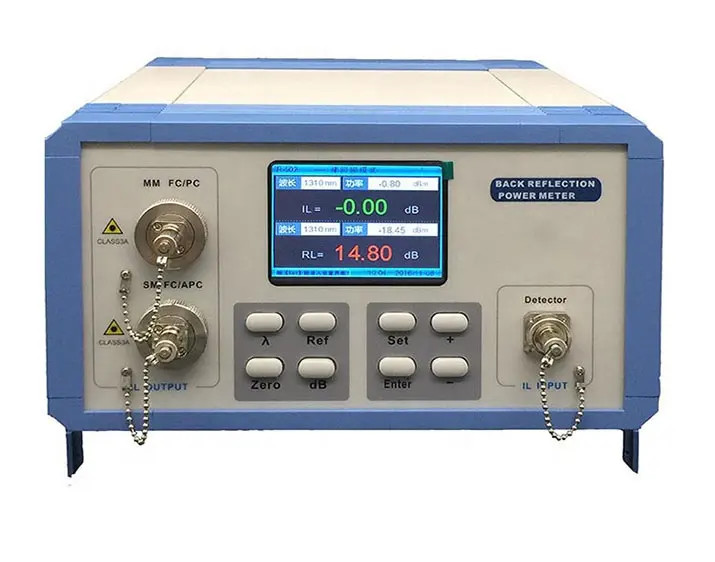

3kg EXW FTTH AC260V High Precision Optic Fiber Insertion Return Loss Tester Machine
Model:ILRL-6001
Place of Origin:ShenZhen,China
Product description
This I/R loss tester is depended on the rich experience in the production and test of the passive components and test instrument, fully absorbing the advantages of the international instrument, Our designs and develops Return Loss/Insertion Loss Test Station to meet the growing customers’ requirements from the domestic andinternational markets.
Return Loss/Insertion Loss Test Stations are widely used to test the insertion loss and return loss of the fiber cables, fiber optical active components and fiber optical passive components.
It is essential and ideal tool for the test, research, development, construction and maintenance of the manufacturers, research institutions and network service providers and carriers.
Standard Specification Fiber Optic Back Reflection Meter Fiber Optic Insertion Return Loss Tester

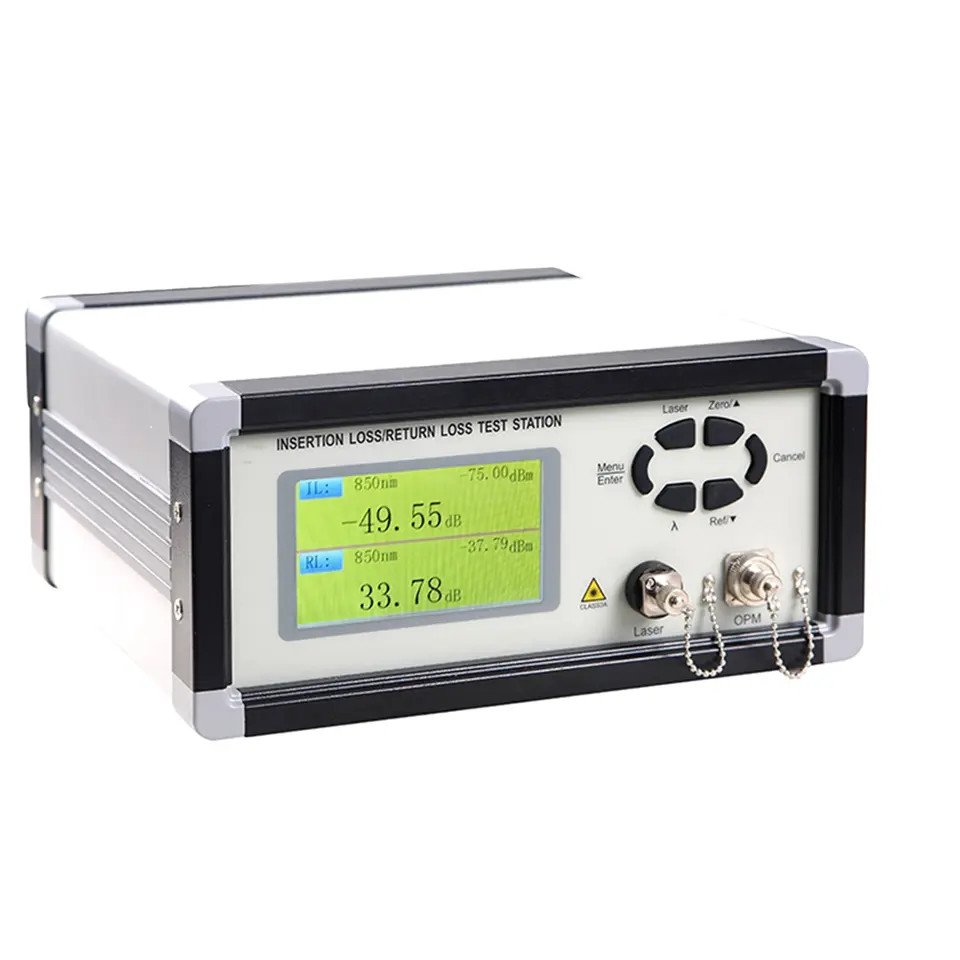

Insertion Loss/Return Loss Test Station is a high performance loss test station that is designed specially for Optical Passive
Components production Test and Lab Test
Feature
High measurement accuracy
Synchronously auto-setting wavelength
Multiple working modes
Easy Operation
Human Engineering Design
Universal optical connector, easy cleaning
USB Port
Applications
1. Used in pigtails and patch cords.
2. Used in optical connections in optical communication equipment rooms and optical distribution frames.
3. Used in optical connections in optical apparatus and equipments.
Specification
| Product Name | Insertion and Return Loss test Satation |
| Optical Return Loss Test |
| Wavelength | 1310/1550nm |
| Optic Connector | FC/APC |
| Return Loss measurement Range | 14.8 ~ 75dB |
| Output Stability of laser source | 0.05dB(1 hour@25°C) |
| Measurement accuracy | 0.25dB |
| Resolution | ±0.3dB |
| Optical Power and Insertion Loss Test |
| Wavelength Range | 800~1700nm |
| Calibrated wavelength | 850/1300/1310/1550nm, more other wavelengths can be optional |
| Optic Connector(Power Meter) | Interchangeable FC/SC/ST/2.5mm Universal /1.25mm adaptors |
| Photo detector | InGaAs |
| Display modes | dBm/dB/xW |
| Measurement range | +3 ~ -75dBm |
| Resolution | Non-linear 0.001dB ;Linear:0.001nw/µW/mW |
| Measurement accuracy | ±5% |
| Other Specification |
| Communication Port | USB |
| Power Supply | AC 90-260V,50~60Hz |
| Operation Temperature | -5℃~+55℃ |
| Storage Temperature | -25℃~+70℃ |
| Dimensions | 360X240X130mm |
| Weight(kg) | 2.8 |
FAQ
1.Are you a factory or a trader?
-we are factory.
2.What is your MOQ?
-MOQ 1 piece.
3.Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4.How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5.How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7.Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
